MHD 추진 시스템의 동작원리

Designer Engineering 2025. 2. 2. 01:03

Describe how the MHD propulsion system works.

MHD 추진 시스템의 동작원리



응답:

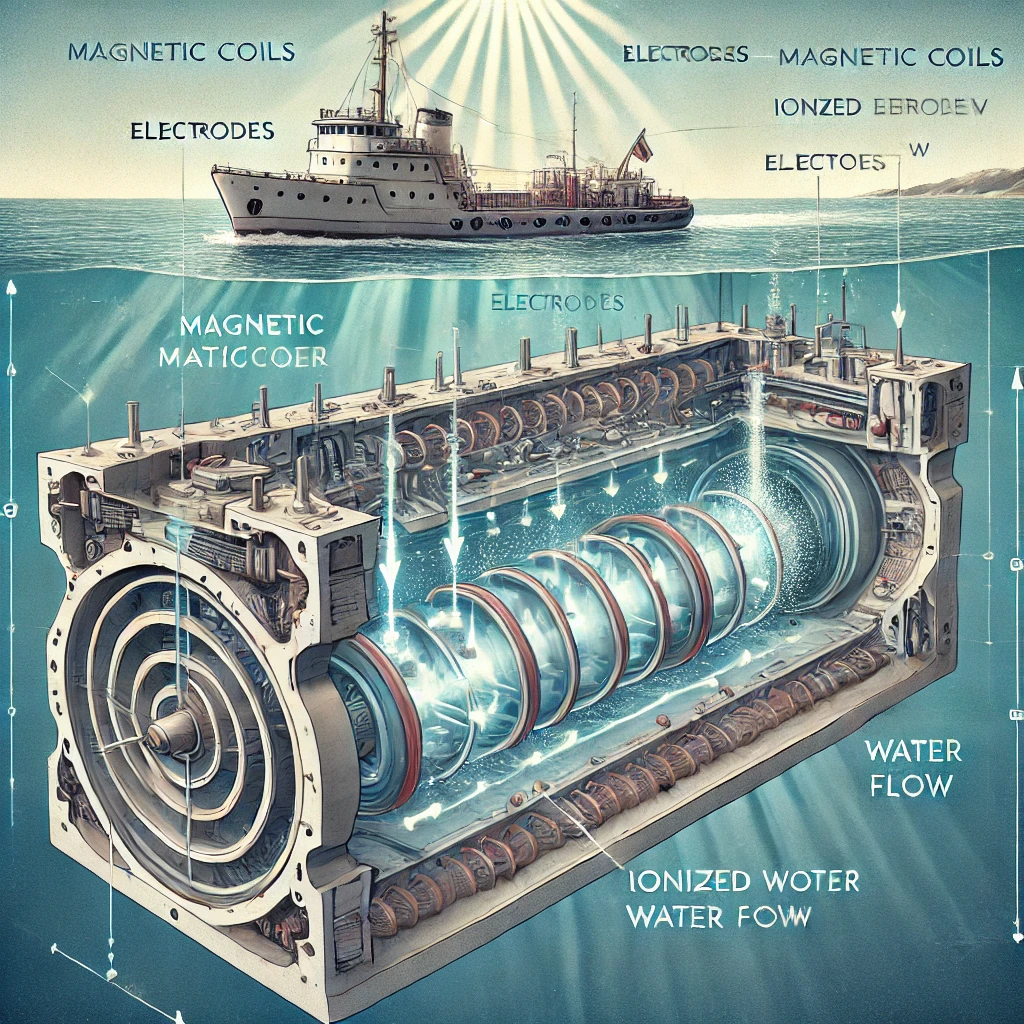

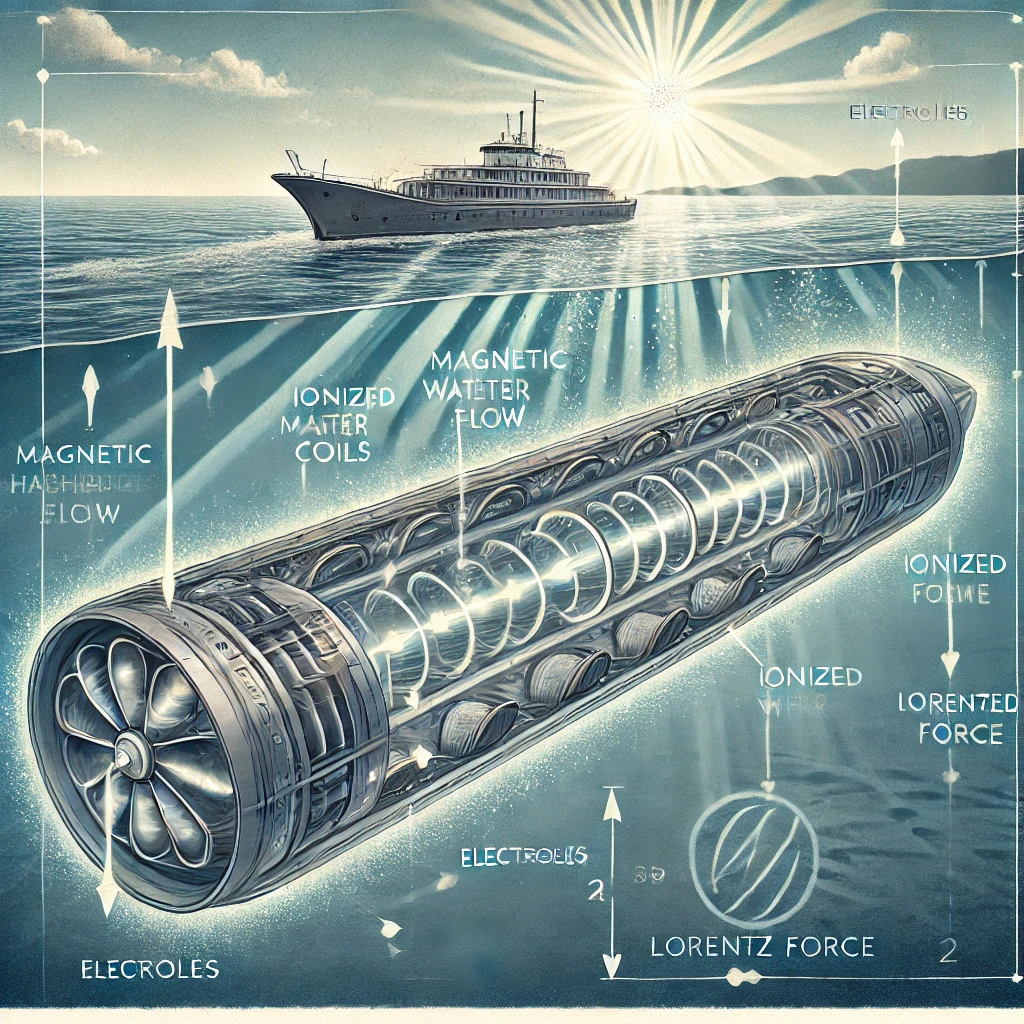

Magnetohydrodynamic (MHD) propulsion is a method of propelling vehicles, typically ships or submarines, using the principles of magnetohydrodynamics, which involves the interaction between magnetic fields and electrically conducting fluids, such as seawater or plasma.

How It Works:

  1. Electrically Conductive Fluid:
    • The propulsion system requires a fluid that can conduct electricity. In marine applications, seawater is ideal because of its natural salinity (dissolved salts make it conductive).
  2. Electric Current Application:
    • Electrodes are placed on opposite sides of the conductive fluid flow channel. When an electric current is applied across these electrodes, it causes the free ions in the seawater to move between them.
  3. Magnetic Field Introduction:
    • A strong magnetic field is generated perpendicular to the electric current. This magnetic field is usually created by superconducting magnets or powerful electromagnets.
  4. Lorentz Force Generation:
    • When the moving charged particles (ions) in the fluid interact with the magnetic field, the Lorentz force is produced. This force acts perpendicular to both the direction of the electric current and the magnetic field.
    • The Lorentz force pushes the fluid in a specific direction, creating a jet of water that propels the vessel forward.
  5. Resulting Propulsion:
    • By pushing the water out the back of the vessel (similar to how a jet engine expels air), the vessel moves forward due to Newton's Third Law of Motion (action and reaction).

Advantages:

  • No Moving Parts: Since MHD propulsion relies on electromagnetic forces, there are no propellers or mechanical parts, which reduces noise and mechanical wear.
  • Silent Operation: The lack of moving parts makes it extremely quiet, making it suitable for stealth operations, particularly in submarines.

Challenges:

  • High Power Requirements: The system requires a significant amount of electrical power to generate the necessary magnetic fields and currents.
  • Cooling and Magnet Technology: Superconducting magnets often need cooling to extremely low temperatures, adding complexity.
  • Efficiency: Current MHD systems are less efficient compared to traditional propulsion, limiting their widespread adoption.

Real-World Application:

One of the most well-known experimental vessels using MHD propulsion was the Yamato 1, a ship built in Japan in the early 1990s. It used liquid metal MHD drives and managed to achieve modest speeds, demonstrating the technology's feasibility but highlighting its practical limitations.



자기유체역학(MHD) 추진은 자기장과 해수 또는 플라즈마와 같은 전기 전도성 유체 사이의 상호 작용을 포함하는 자기유체역학 원리를 사용하여 선박이나 잠수함 등의 차량을 추진하는 방식입니다.

작동 원리
전기 전도성 유체:

추진 시스템에는 전기를 전도할 수 있는 유체가 필요합니다. 해양 분야에서는 바닷물이 자연 염분(용해된 염분으로 인해 전도성이 있음) 때문에 이상적입니다.
전류 애플리케이션:

전극은 전도성 유체 흐름 채널의 반대편에 배치됩니다. 이 전극에 전류가 흐르면 바닷물의 자유 이온이 전극 사이를 이동하게 됩니다.
자기장 소개:

전류에 수직으로 강한 자기장이 생성됩니다. 이 자기장은 일반적으로 초전도 자석이나 강력한 전자석에 의해 생성됩니다.
로렌츠 힘 생성:

유체 내에서 움직이는 하전 입자(이온)가 자기장과 상호 작용할 때 로렌츠 힘이 생성됩니다. 이 힘은 전류의 방향과 자기장 모두에 수직으로 작용합니다.
로렌츠 힘은 유체를 특정 방향으로 밀어내어 물 분사를 일으켜 선박을 앞으로 나아가게 합니다.
결과적인 추진력:

제트 엔진이 공기를 내뿜는 것과 유사하게 물을 용기 뒤쪽으로 밀어내면 뉴턴의 제3운동법칙(작용과 반작용)에 따라 용기가 앞으로 나아갑니다.
장점
움직이는 부품이 없습니다: MHD 추진은 전자기력에 의존하기 때문에 프로펠러나 기계 부품이 없으므로 소음과 기계적 마모가 줄어듭니다.
조용한 작동: 움직이는 부품이 없기 때문에 매우 조용하여 특히 잠수함에서 스텔스 작전에 적합합니다.
도전 과제:
높은 전력 요구 사항: 이 시스템은 필요한 자기장과 전류를 생성하기 위해 상당한 양의 전력을 필요로 합니다.
냉각 및 자석 기술: 초전도 자석은 종종 극저온으로 냉각해야 하므로 복잡성이 더해집니다.
효율성: 현재의 MHD 시스템은 기존 추진 방식에 비해 효율성이 낮아 널리 채택되는 데 한계가 있습니다.
실제 적용 사례:
MHD 추진을 사용한 가장 잘 알려진 실험용 선박 중 하나는 1990년대 초 일본에서 건조된 야마토 1입니다. 이 선박은 액체 금속 MHD 드라이브를 사용했고 적당한 속도를 달성하여 기술의 실현 가능성을 입증했지만 실용적인 한계를 드러냈습니다.
